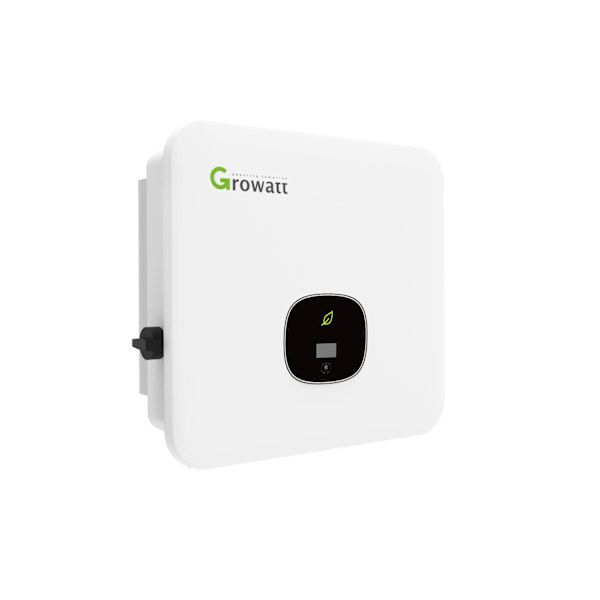

The Growatt 10 Kw Three-Phase Inverter is one of the best in the class and has a maximum efficiency of 98.6%. In addition, it is really good both when it comes to function and capacity. It gives you a reliable and secure partner so you can feel confident that everything is working as it should. The inverter is easy for you to manage and monitor as it is equipped with both an OLED screen and Touch button. In addition, it is beautiful to look at. Complete with a Growatt Shine WiFi-X Wi-Fi transmitter and monitor your solar system via your smartphone wherever you are

This inverter is equipped with string monitoring that informs you in a safe way about the performance of your solar system. Therefore, you detect disturbances and can take quick and precise measures should something go wrong. With the system, you react immediately to power losses for individual strings and can fix, for example, defective solar panels or defective connectors and cabling before these have time to cause major problems.

·In addition to these eminent functions, Growatt inverters are equipped with a built-in AFCI function which, when properly activated, can detect arcing faults on the DC circuit and, in such a case, shuts down the inverter to prevent a disaster in the form of a fire.

· To further increase safety, Type II SPDs are installed on both the DC and AC side, which minimizes damage in the event of lightning strikes.

 *GROWATT is a global leading company of smart energy solutions. Growatt is the largest in the world in Inverters, but in addition has an impressive portfolio of other energy products such as energy storage systems, EV chargers and smart energy management solutions. The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt was founded in 2010 and has its manufacturing facility in Huizhou, China with 23 local offices around the world

Preferences

INPUT DATA

Max. Recommended PV output (for module STC); 15000W

Max. DC voltage; 1100V

Start the excitement; 160V

Nominal voltage; 580V

Mppt voltage range; 140V-1000V

Number of MPP trackers; 2

Number of PV strings per MPP tracker; 1

Max. Input current per MPP tracker; 13A

Max. Short circuit current per MPP tracker; 16A

OUTPUT DATA;

AC Nominal voltage; 10000W

Max. AC apparent voltage; 11000VA

Nominal AC voltage (range *); 220V/380V, 230V/400V (340-440V

AC frequency (range *); 50/60 Hz (45-55 Hz/55/65 Hz)

Max. output current; 16.7A

Adjustable power factor; 0.8 leading...0.8 lagging

THDI
