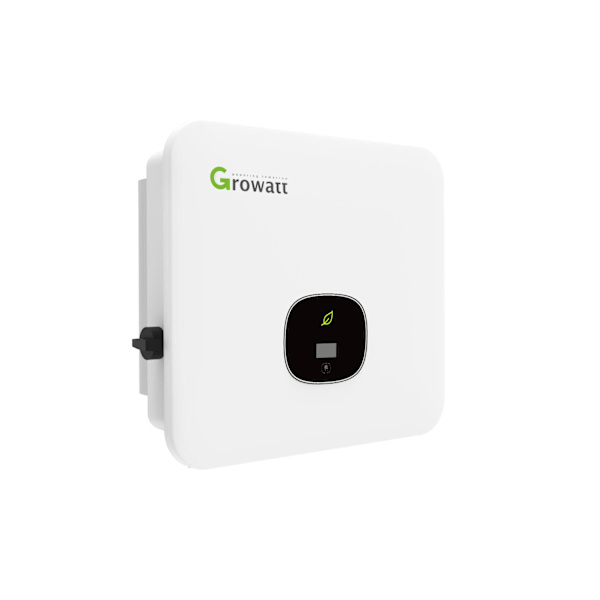

If you want it easy, the Growatt 20 Kw three-phase inverter is something for you! It belongs to the larger inverters that are intended for applications with high requirements. Reliability and simplicity were the watchwords when it was developed and we can certainly attest that Growatt has succeeded in fulfilling that. Simple: you manage everything with a Touch button on an OLED screen or via an App, supplement with a Growatt Shine WiFi-X Wi-Fi transmitter and monitor your solar system via your smartphone wherever you are, it couldn't be easier. Managing and monitoring your facility will be a pleasure and it is so neat and elegant to look at and we think you and most people appreciate that, right?

Without renouncing your or your family's safety, it is high-performing and has a maximum effect of 98.6%, which means you can be sure that you are getting value for your investment!

The GROWATT Premium Three-Phase Inverter / Inverter 20 Kw TL3-X is equipped with string monitoring that informs you in a safe way about the performance of your solar system. If your facility is exposed to disturbances, they detect these immediately and can therefore quickly and precisely take measures. With alerts, the system reacts immediately to power losses for individual strings and you can fix, for example, defective or obscured solar panels by fallen branches or snow, broken connectors, wiring and much more within these other root causes for your facility.

· AFCI function: detecting arc faults on the DC circuit in time is important, otherwise you can risk a disaster. Growatt inverters are equipped with a built-in AFCI function which, when properly activated, shuts down the inverter.

· Type II SPD: Afraid of thunder and lightning? To further increase safety, Type II SPD is installed on both the DC and AC side, which minimizes damage in the event of lightning strikes.

   *GROWATT as a company: global leading company of smart energy solutions. Growatt is the largest in the world in Inverters, but in addition has an impressive portfolio of other energy products such as energy storage systems, EV chargers and smart energy management solutions. The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt was founded in 2010 and has its manufacturing facility in Huizhou, China with 23 local offices around the world

Preferences

INPUT DATA

Max. Recommended PV output (for module STC); 30000W

Max. DC voltage; 1100V

The starting voltage; 160V

Nominal voltage; 580V

Mppt voltage range; 140V-1000V

Number of MPP trackers; 2

Number of PV strings per MPP tracker; 1

Max. Input current per MPP tracker; 27A

Max. Short circuit current per MPP tracker; 33.8A

OUTPUT DATA;

AC Nominal voltage; 20000W

Max. AC apparent voltage; 22000VA

Nominal AC voltage (range *); 220V/380V, 230V/400V (340-440V

AC frequency (range *); 50/60 Hz (45-55 Hz/55/65 Hz)

Max. output current; 31.9A

Adjustable power factor; 0.8 leading...0.8 lagging

THDI
