1/14 R/C Team Hahn Racing MAN TGS (TT-01 Type-E)Hahn-tastic!!!

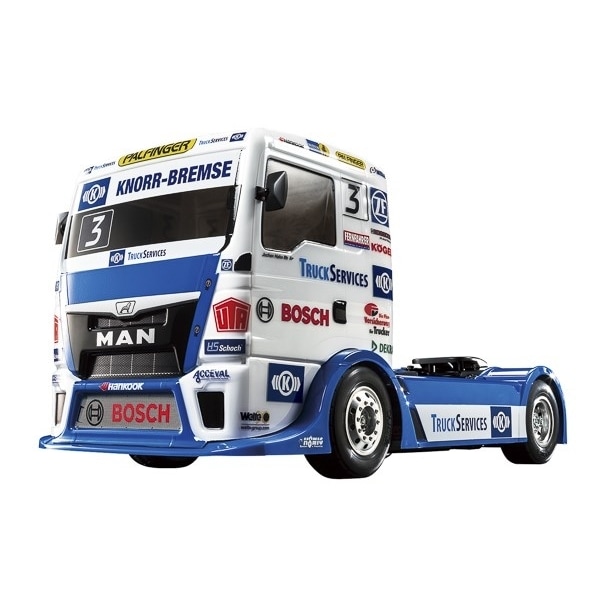

This is an exciting R/C model assembly kit recreating the Team Hahn Racing MAN TGS truck which stars on the truck racing circuit in Europe.

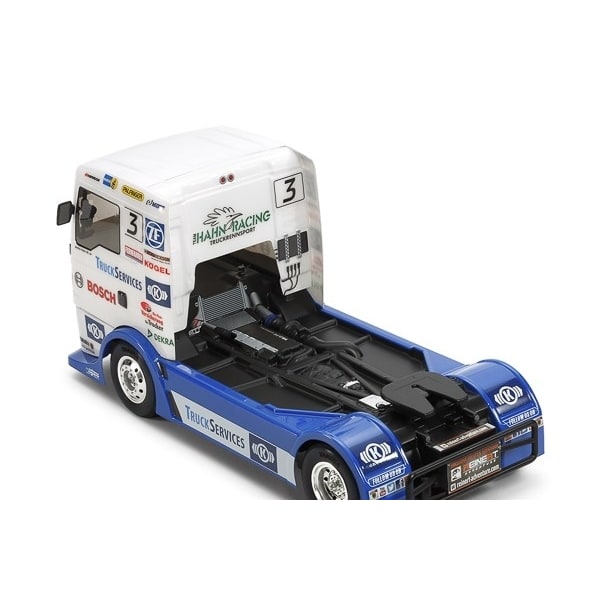

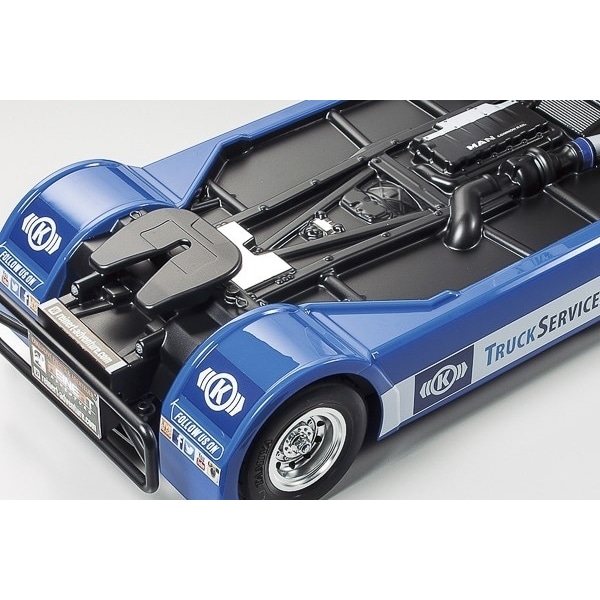

The realistic body is a 4-piece set made from lightweight and durable polycarbonate, with separately molded plastic side mirrors, coupler and rear bumper parts. The TT-01 Type-E chassis is a proven performer, and here is fitted with dedicated new wheels and tires for the model.

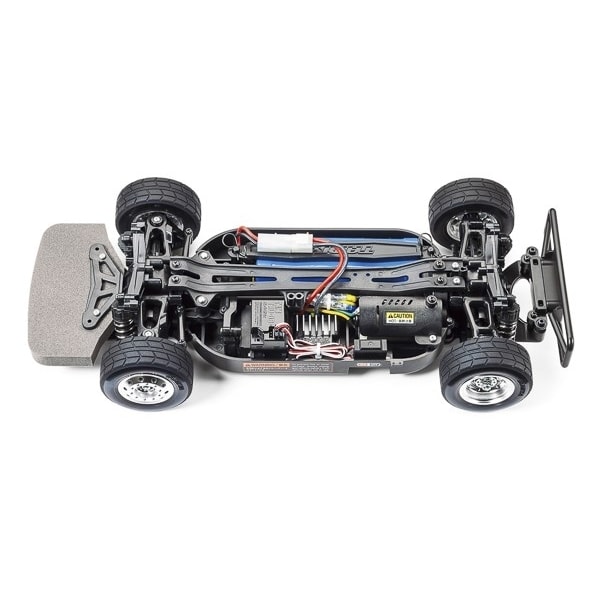

Evolved Chassis

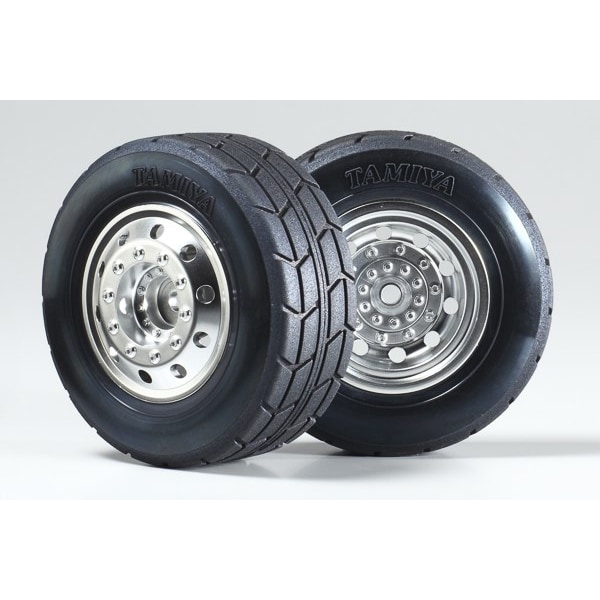

The bathtub frame of the evolved shaft-driven 4WD TT-01 Type-E has its motor and battery close to the ground for lower center of gravity and optimum balance. Mounted on the bathtub frame is a fiberglass reinforced nylon upper deck and gear covers improving rigidity, as well as a 3-piece tie rod providing a smoother steering action. The low center of gravity, great balanced design, 4 wheel double wishbone suspension system, and front and rear differential gears all come together to produce excellent operating ability. 70mm-diameter radial tires are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns.
Specifications:

• Length:438mm, Width: 190mm, Height: 207mm
• Wheelbase: 257mm
• Tire Width/Diameter: 28/70mm
• Bathtub Type Chassis Frame
• Longitudinally-Mounted Motor Shaft-Driven Full-Time 4WD
• F/R 3-Bevel Differentials
• 3-Piece Steering Tie-Rod
• 4-Wheel Double Wishbone Suspension
• F/R Friction Dampers
• Gear Ratio=8.35:1
• Type 540 Motor
