Product Parameters

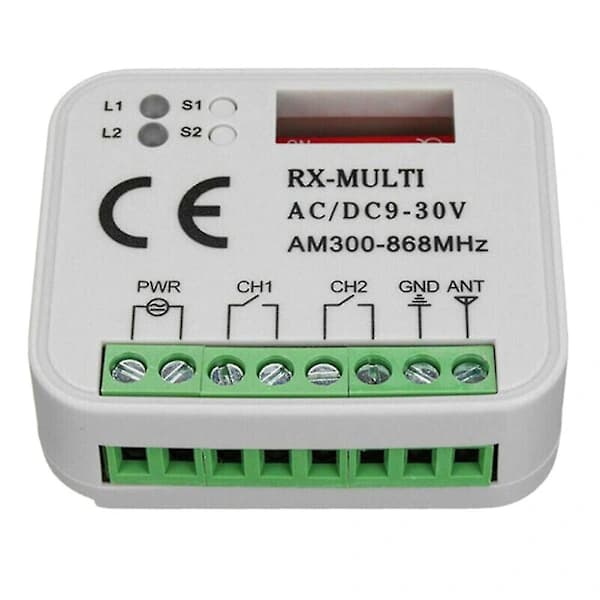

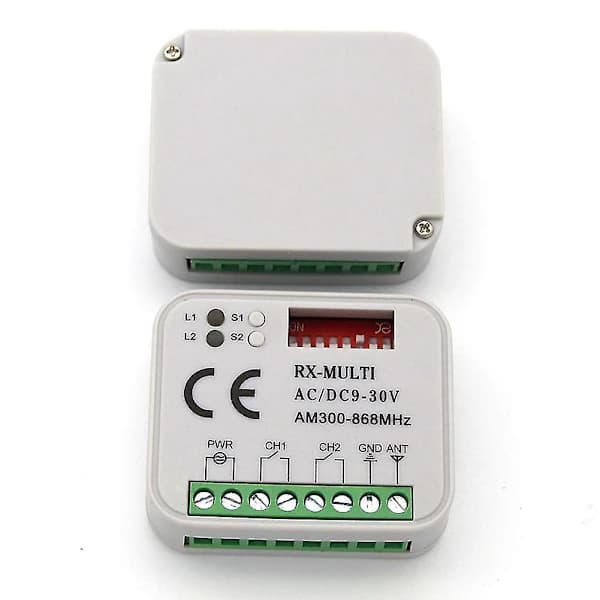

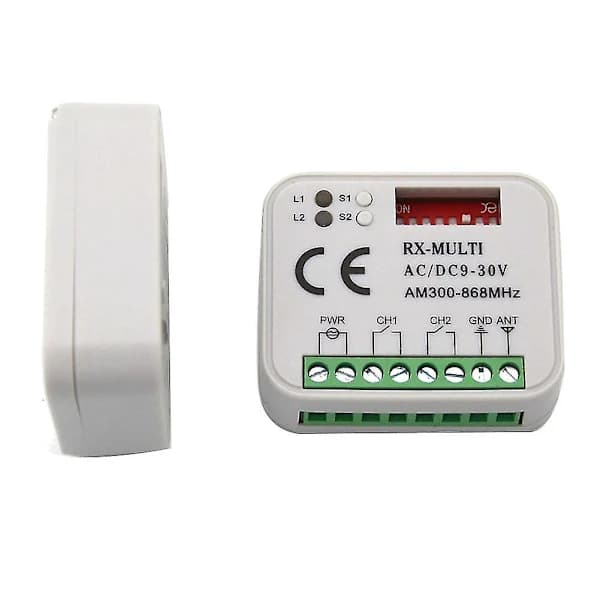

Receiver and remote control set in white and black, made of ABS material. The receiver measures approximately 5.5 x 4.5 x 1.0 cm and has a compact mini design. Input supports AC/DC 9-30V. The package includes 1 receiver and 3 remote controls.
Core Features

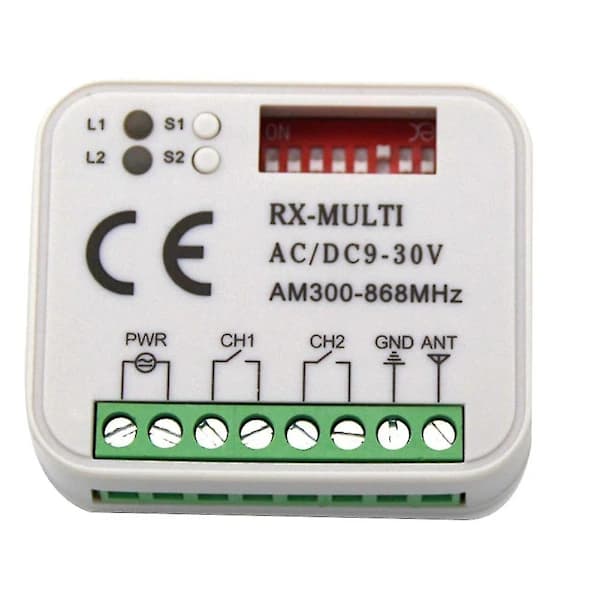

This receiver is designed for multi-frequency use within 300-900MHz and is compatible with 433.92MHz fixed code remote controls. One receiver can work with up to 400 codes. It is designed not to interfere with other remote controls and receivers. With 8 dip-switches, users can create different combinations for various remote controls. The remote control programming process includes a learn button and LED indicator for status feedback, while stored data can be erased by pressing and holding the learn button until the LED turns off.
Suitable Scenarios
Suitable for garage door remote control applications and similar access control uses where a compact receiver and multiple remote controls are needed. The operating distance is approximately 50-150 meters depending on the environment and installation conditions.
Product Overview
This compact receiver kit combines ABS construction, AC/DC 9-30V input support, multi-code storage, and 3 included remote controls. It offers convenient setup via dip-switch selection and learn button programming for compatible 433.92MHz fixed code remote controls.
