General Description
This high-quality MPPT + PWM solar charge controller is designed to optimize the energy efficiency of your solar system. Although it is not a 100% MPPT, its tracking efficiency is impressive, reaching up to 99.5%. It automatically recognizes and switches voltages of 12V, 24V, 36V, and 48V and features a dual 5V USB charging port.
Technical Specifications
Item Type: Solar Charge Controller
Material: ABS
Voltage: Adaptable to 12V, 24V, 36V, 48V
Rated Current: 100A
Maximum PV Voltage: 100V
Maximum Solar Input (Voc): 15-25V (12V battery); 30-50V (24V battery); 45-75V (36V battery); 60-100V (48V battery)
Photovoltaic Input Power (Maximum): 1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery)
Compatibility and Accessories

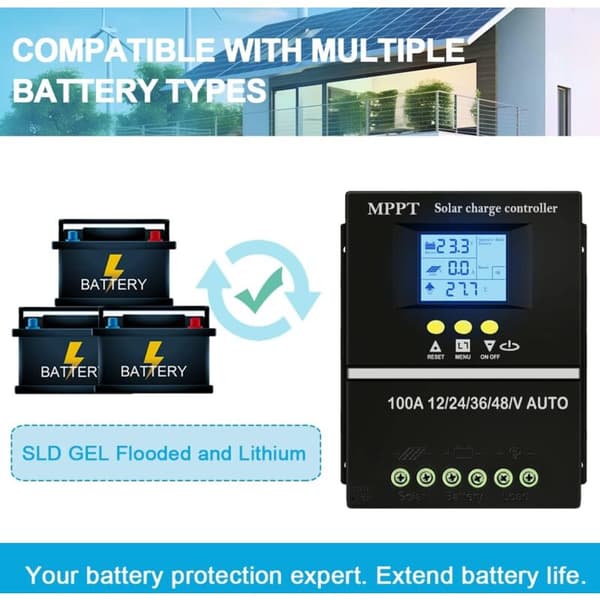

Compatible with charging the following batteries:
Sealed
GEL
Flooded
LifePO4
Installation
Follow the included instructions to ensure proper and safe installation. Make sure the system is turned off before starting the installation.
Usage
To use the controller, follow these steps:
Never let the battery discharge.
Light control mode: the battery starts discharging after 10 minutes at night and stops after 10 minutes during the day.
Light and delay control mode: Discharge starts after a 10-minute delay at dusk and stops according to a countdown.
General use control mode: discharge is maintained without interruption.
Manual use control mode: use the '▼' button to control the discharge status.
Time control mode: Turn the discharge on or off regularly.
Test mode: Similar to light control modes, but with a reduced delay.
Low voltage protection: the controller turns off the discharge at too low voltage.
Other Information

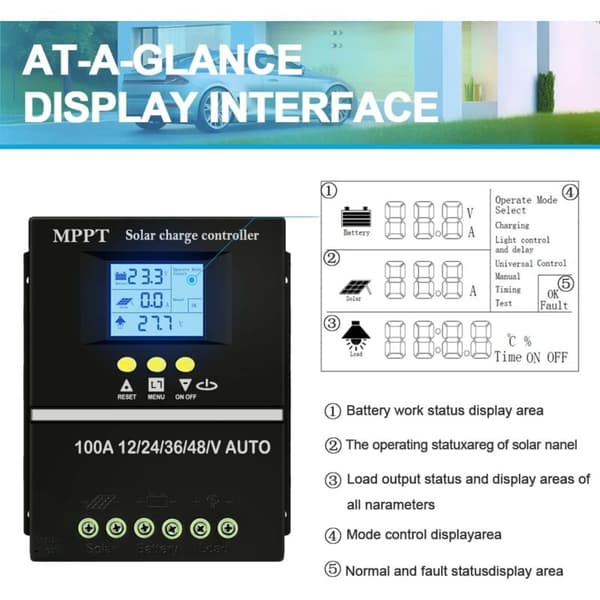

The controller is equipped with a multifunctional LCD screen with backlight, which displays the time and provides access to 7 different operating modes.
