General description

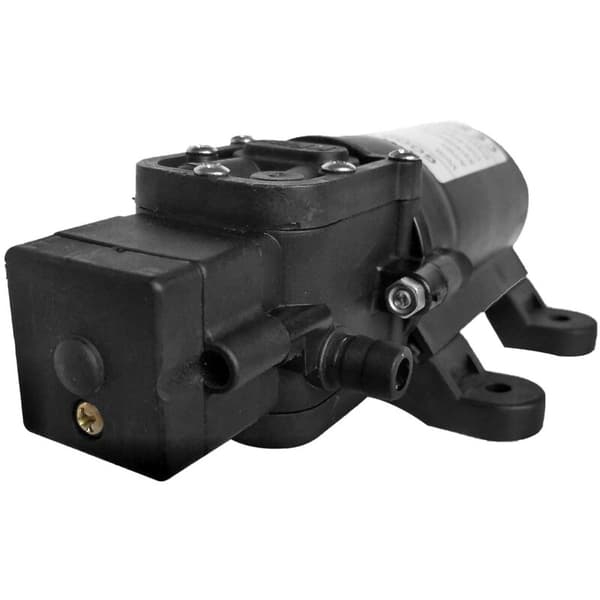

The high-pressure water pump is made of premium engineering plastic, providing impact resistance and increased durability. It is ideal for use in RVs, car washing, and garden irrigation.
Technical specifications
Item type: Diaphragm pump
Pump housing material: Engineering plastic
External size: Approx. 160 x 100 x 60 mm
Insertion tube diameter: Approx. 10 mm
Gross weight: Approx. 700 g
Voltage: 12 V
Current: Approx. 1.4-3 A
Protection pressure: 0.6 Mpa
General pressure: 0.3-0.4 Mpa or more
Open flow: 2-3.5 L/min or more
Suction range: 1 m, lifting range up to 30 m
Compatibility and accessories
This pump is compatible with various water distribution systems and can be used with accessories such as suitable hoses and connectors.
Installation
Install the pump in an accessible and secure location. Connect the inlet and outlet hoses, ensuring they are securely fastened. Make sure the power supply is correct before turning on.
Operation
The pump operates automatically as soon as it detects water flow. Close the valve to prevent the pump from running. It is suitable for various applications such as irrigation and washing.
Other information
Manual measurements may result in errors; please take them into account when using the specifications.
