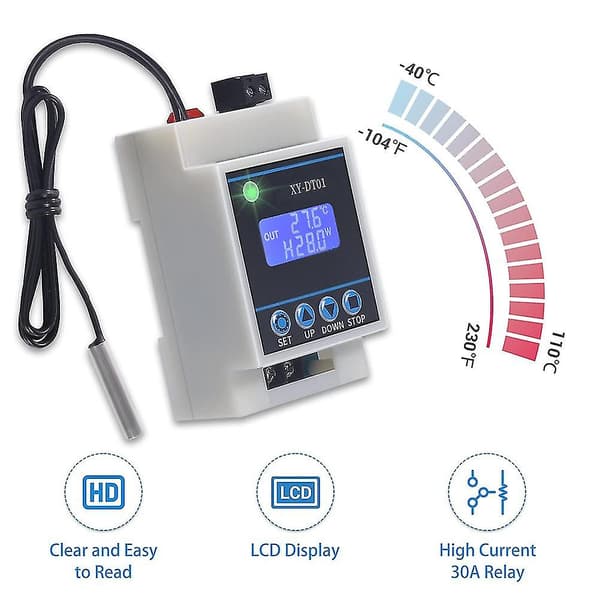

[Easy to Use]: The temperature range of this temperature controller is -40-110. Convenient to set and adjust, with HD LCD display and 4 buttons. It is a relay temperature controller, you need to connect additional power supply to the load.
[High Current 30A Relay]: High power: 220V 30A. It can be used for high-power equipment, such as refrigerator, incubator, incubator, fermenter, greenhouse, etc. Connect power supply and heating/cooling equipment, place the probe and set the temperature, it will work well.
[Heating/Cooling Function]: Heating mode 'H': when the detection temperature is less than the set temperature - hysteresis temperature, the relay turns on and the heating equipment starts to work; When the detected temperature is the set temperature, the relay disconnects and the heating equipment stops working. The principle of cooling mode 'C' is the same.
[Delay & Temperature Correction Function]: Delay 'OPH': When a heating or cooling job is completed, the system starts timing 'T'. When T OPH, the system can perform the round of heating or cooling work. Temperature correction 'OFE'(-10.0-10.0): When the system works for a long time, there may be deviations, which can be corrected by this function. Actual temperature = measured temperature + calibration value.
[High Temperature Alarm Function]: When the actual temperature is the alarm temperature, the system turns on the sound and light alarm and disconnects the relay, press any button to stop the sound and light.
Usage steps:
1. Connect sensor to controller.
2. Connect to power supply to controller.
3. Adjust temperature, stop temperature and temperature correction.
4. Remove the power supply.
5. Connect to load with power supply at the relay output terminal, if necessary in step 5.
6. Connect to power supply to controller again.
7. Test and work
color: As shown
Material: plastic
Package contents:
1 x XY-DT01 Digital temperature controller
Only the above package content, others are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
