Beskrivelse
Forøg SPI output port +3.3V strømforsyning, ekstern SPI sensor strømforsyningsspænding +3.3V og +5V valgfri.
PC kommunikations USB interface er ændret fra Mini USB til Micro-USB B, som er mere tilpasningsdygtig.
Forøg strømforsyningen til SPI output porten, understøtter at bundkortet direkte forsyner periferiudstyret med strøm.
Onboard TMC2209 mute driver UART mode, understøtter mute printing.
Forøg termistor interface beskyttelseskredsløbet for at forhindre brænding af hovedkontrolchippen.

Brand Name:BIGTREETECH
Item Type:Bundkort

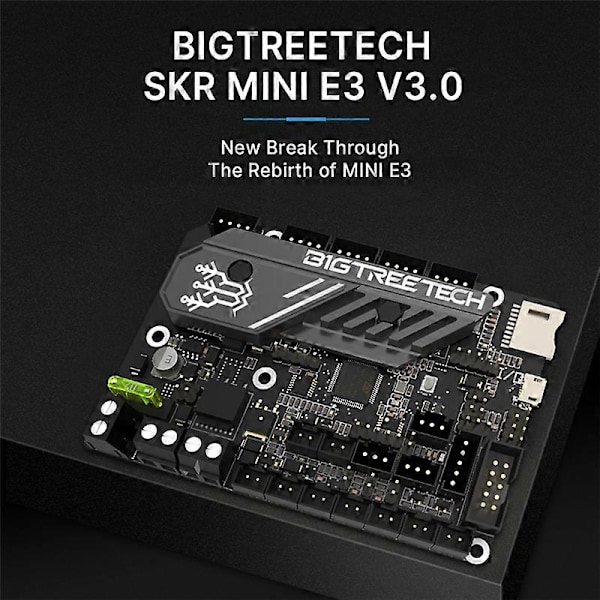

Model Number:SKR MINI E3 V3.0

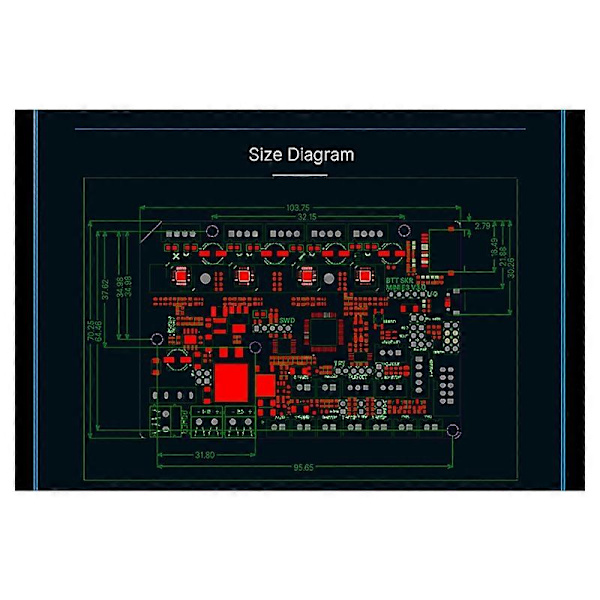

Product Size:103.75 x 70.25mm
Board Layer:4
MCU:STM32G0B1RET6/STM32G0B0RET6
Power Input:DC12/24V
Logic Voltage:3.3V
Motor Driver:UART mode of on-board TMC2209*4
Interfaces Of Motor Driver:XM,YM,ZAM,ZBM,EM
Interfaces Of Temperature Sensor:TH0,THB,2-way 100K NTC(RTD)
Matched Display Screen:2.4-inch TFT,3.5-inch TFT,Ender3 LCD12864 screen,etc.
PC Communication Interface:USB Micro-B type,easy to plug,communication baud rate 115200
File Format:G-code
Recommended Software:Cura,Simplify 3D,Pronterface,Repetier-host,Makerware
Onboard EEPROM:24C32
Double Z-axis interface:YES
CNC Fan Interfaces:3
5V Power Supply:BL Touch,TFT and RGB interfaces,DCDC5V V1.0 Module
Onboard 5V Power Supply:Yes
Onboard Sensorless Homing Function:Yes
Support:BL Touch,filament detection,power-off resume,automatic shutdown(PS-ON),etc,SD card offline printing,online printing,SPI, UART expansion, connect to Raspberry Pi through SPI, UART, USB (Type-C) virtual serial port
Compatible:Ender 3,Ender 3 Pro,Ender 5,CR 10
Support Firmware:Marlin,Klipper
Integrated:RGB color light strip drive circuit
Type:3D Control board
color:Black
Material:plastic

Package Contents:

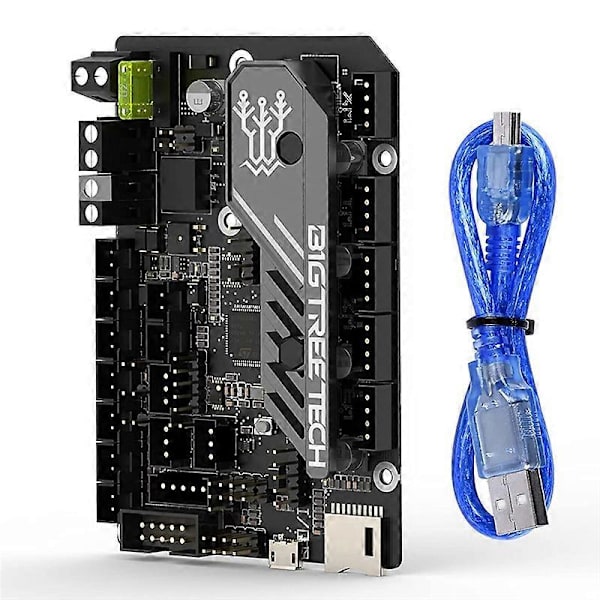

1 x BTT SKR MINI E3 V3.0 32 Bit Bundkort
1 x cable(random color, cannot choose the specified color)
