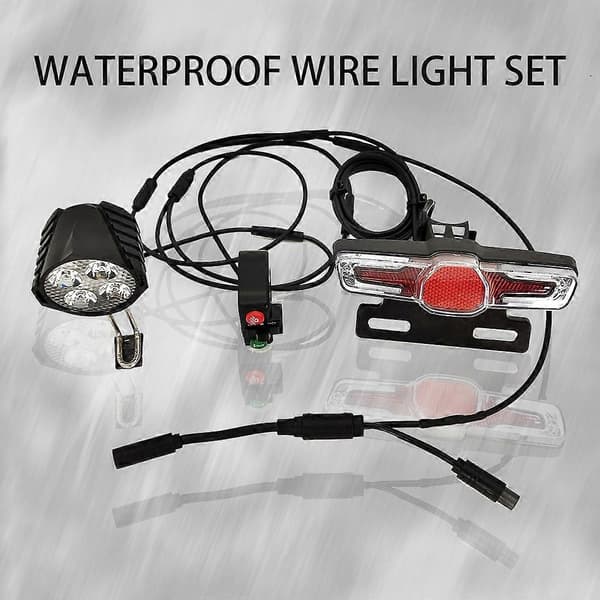

Product feature:
1. The choice of high power and high brightness, energy saving;
2. The use of high-power LED lamp beads, front light-emitting mode, uniform light color and no dark areas;
3. The outer cover is made of PMMA material, with high transparency and anti-glare;
4. It can be switched on and off frequently, without flicker and glare, and has good color rendering performance;
5. Using high-efficiency LED flow driver chip, the efficiency can be as high as 90% or more:
6. The service life is 35000 hours
7. Tested at an ambient temperature of 50, the luminous flux maintenance rate for 6000 hours is 93%, and the luminous flux maintenance rate for 35000 hours is 70%
Electrical parameters:
Product model: Front light LS-021
Power voltage: 24~48V
Lamp current/power: 59mA/2.8W
Luminous flux [LM]: 180~200LM
Speaker current/power: 44mA/2.1W
Speaker volume: 80~100dB
Product appearance (50*62*73)
Taillight parameters:
Code: DZ0275-WD05D
Taillight net weight: 120g
Shell material: plastic
Applicable voltage range: 24-80V
Power: 1.5W
Number of light sources: 14
Luminous flux: 15LM
Product size: 132*65*40mm
Switch parameters:
Code: DZ0002
1. Switch net weight: 92g
2. Shell material: plastic
Product size: 26*53*61mm

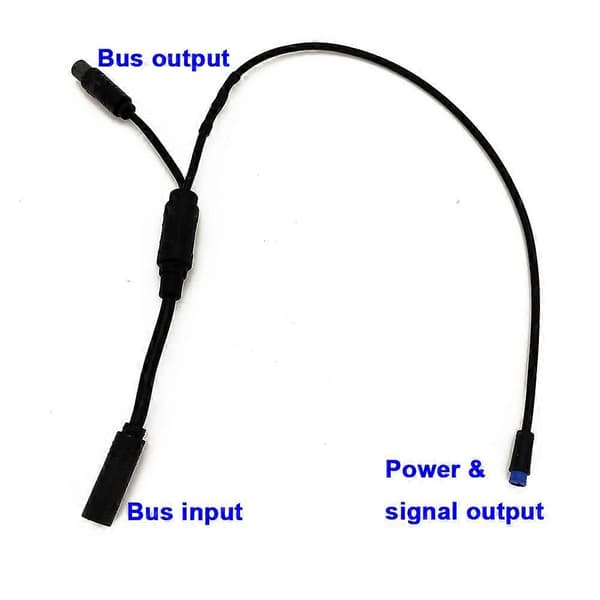

Waterproof cable size:
Front light: 25CM + bus 16CM
Switch: 25CM + bus 33CM
The bus contains a large part of the separation: 41CM
Taillight: bus 14.5CM+115CM
Power supply: 19.5CM + bus 39CM
Total length 24CM, taillight power supply part 25CM
Single package size: 23*12.5*8.5CM
Net weight is about 380g
Gross weight about 450g
