1. Complies with J1772 standard
2. Beautiful appearance, with protective cover, supports front mounting
3. The pin is designed with safety insulation to prevent accidental direct contact with human hands. Protection performance, the protection level reaches IP54

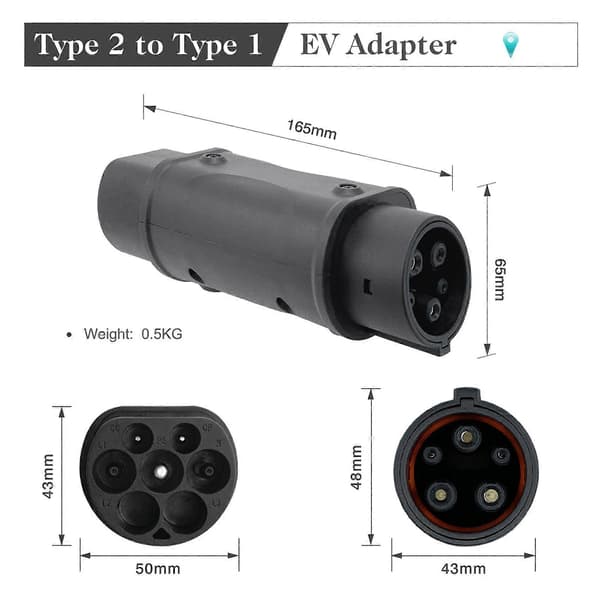

4. Type: European change American Adapter
5. Application: charging
Mechanical behavior:
1. Mechanical life: no-load plugging and unplugging 10000
2. Insertion force during coupling: 45N Less than 80N
Electrical performance:
1. Rated working current: 16A or 32A
2. Working voltage: 110V~250V
3. Insulation resistance: 1000M (DC500V)
4. Terminal temperature rise: Less than 50K
5. Withstand voltage: 2000V
6. Contact resistance: 0.5m Max
Temperature:
1. Working environment temperature: -30~+50
We recommend using the following steps:
1. Plug the Type 2 end of the adapter into the charging cable
2. Plug the Type 1 end of the adapter into the car's charging socket
3. Once the adapter has clicked into place, you are ready to charge
Don't forget to activate the charging station
When you are finished charging, first disconnect the vehicle side and then the charging station side. Remove the adapter from the charging station when not in use.
Material: thermoplastic
Colour: Black
Package Contents:
1 x Electric charging
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
